製品詳細
起源の場所: 中国
ブランド名: COWELL
証明: CNex
モデル番号: YJ7506
支払及び船積みの言葉
最小注文数量: 1
パッケージの詳細: ハードカートン
受渡し時間: 3～7営業日
支払条件: T/T
使用圧力: |
6バール |
操作方法: |
空気圧 |
必要な空気圧: |
4-8Bar |
繋がり: |
フランジ |
使用圧力: |
6バール |
操作方法: |
空気圧 |
必要な空気圧: |
4-8Bar |
繋がり: |
フランジ |
Description

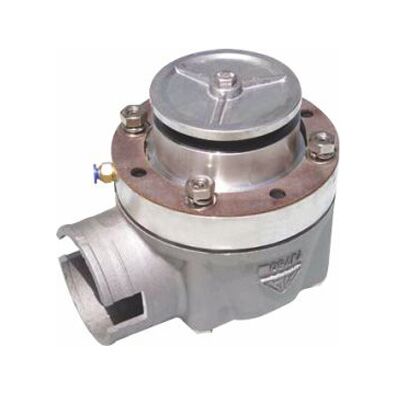

Vapor recovery pipe control valve is also called side plate valve. It is installed on
the top of the tank truck and back of the vapor recovery pipe. While loading or unloading,
the gas goes out through vapor recovery pipe control valve, it ensures the internal and external
pressure of the tank maintain balance. The exit direction should be from back down 45 degree.
Characteristics
Greater spring tension, tigher seal.
Higher rated flow, lower presure drop.
Easy installation
Available with all TTMA flange
Pneumatic control on the opening and closing
Material
Body: Aluminum alloy
Filter: Stainless Steel
Spring: Stainless Steel
Seal: NBR
|
Technical Specification |
|
|
Model |
YJ7506 |
|
Working pressure |
0.6 Mpa |
|
Air pressure required |
0.4-0.8 Mpa |
|
Temperature range |
-20~70℃ |
|
Connection mode |
Flange |
|
Operating mode |
Pneumatic |
|
Medium |
Diesel, Gasoline, Kersene |
