製品詳細
起源の場所: 中国
ブランド名: COWELL
証明: CE
モデル番号: HYF-01、HYF-02
支払及び船積みの言葉
最小注文数量: 1
パッケージの詳細: ハードカートン
受渡し時間: 7～15営業日
支払条件: T/T
製品: |
APIアダプター |
サイズ: |
4" |
材料: |
アルミニウム合金 |
応用: |
ディーゼル、ガソリン、ケルシン |
製品: |
APIアダプター |
サイズ: |
4" |
材料: |
アルミニウム合金 |
応用: |
ディーゼル、ガソリン、ケルシン |
Description

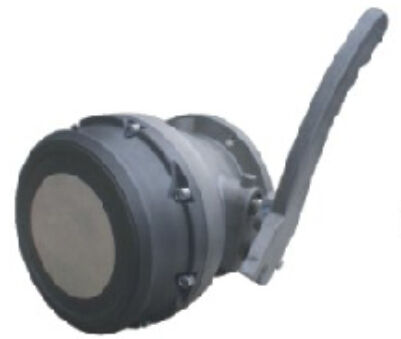

HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,
When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.
Characteristics
Aluminum alloy die-cast sturcture, anodized treatment
Hydrodynamic design minimizes the pressure drop for high flow rate.
Light weight, die cast aluminum construction for increased payloads with strength.
Two-stage fixed aluminum handle positively indicates valve position.
Stainless steel operation shaft, cam & poppet stem for durability.
The sight glass can be check easily by operator
Material
Body: Aluminum alloy
Shaft: Stainless Steel
Spring: Stainless Steel
Bushing: Copper
Seal: NBR
Handle: Aluminum
|
Technical Specification |
||
|
Model |
HYF-01 |
HYF-02 |
|
Size |
4" |
|
|
Working pressure |
0.6 Mpa | |
|
Max. flow rate |
2500L/Min |
|
|
Air pressure required |
0.4-0.8 Mpa |
|
|
Temperature range |
-20~70℃ |
|
|
Connection mode |
Flange |
|
|
Operating mode |
Mechanical Fork |
Mechanical Rack |
|
Medium |
Diesel, Gasoline, Kersene |
|
