Description

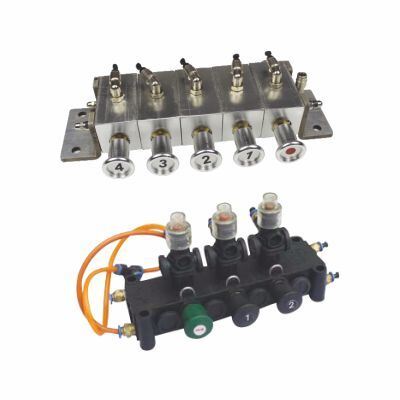

Pneumatic control block is the pneumatic central control installed on the tanker.
It controls emergency foot valve, vapor recovery valve, pipeline control valve, API
valve etc. It is available with remote control to cut off the valves under emergency.
It can be quick opened and closed by pneumatic control block to ensure the loading
and unloading more reliable.
Characteristics
Small, compact and robust
Easy to operate
Can not be opened when the air pressure is less than 0.3Mpa
Automatic closed if air leaked
1/4" NPT air lineholes
Sight glass to display open and close
Material
Body: Aluminum alloy, Plastic
Spring: Stainless Steel
Seal: NBR
Shaft: Stainless steel, Copper
|
Technical Specification |
||
|
Model |
YJ106 |
YJ107 |
|
Air pipe size |
6mm |
|
|
Working pressure |
8 Bar |
|
|
Operating mode |
Pneumatic |
|
|
Temperature |
-20~70℃ |
|
|
Connection mode |
Push-in |
|
|
Medium |
Air |
|
|
Material |
Plastic |
Aluminum |
