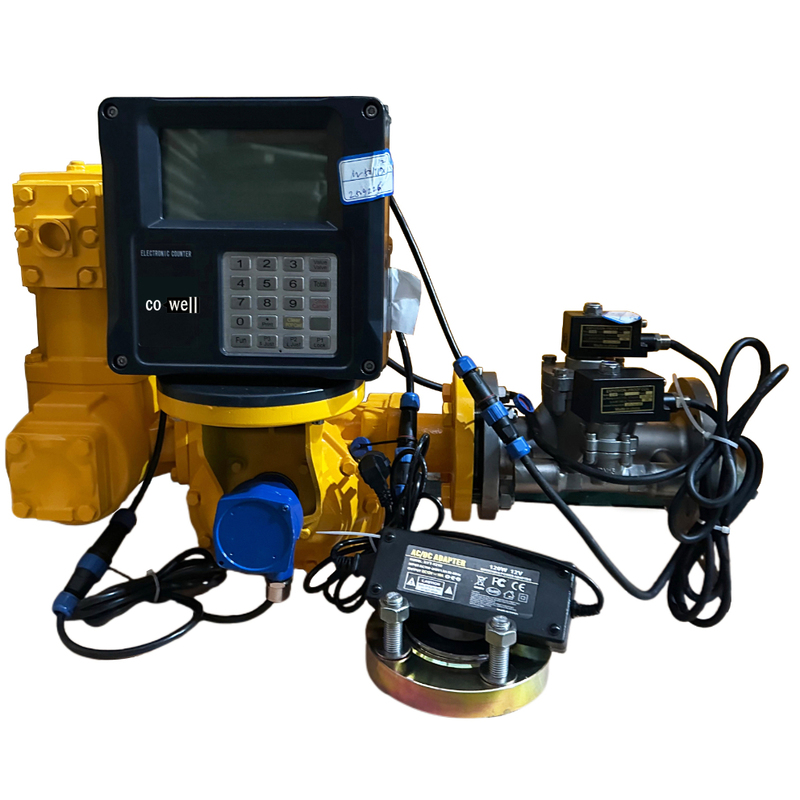

M-40-BPX-1 Smart Electronic Flow Meter with Stainless Steel Solenoid Valve

Name: M-40-BPX-1 Smart Electronic Flow Meter with Stainless Steel Solenoid Valve
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: M-40-BPX-1
Price: 440.00 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: COWELL

証明: CE

モデル番号: M-40-BPX-1

支払及び船積みの言葉

最小注文数量: 1

パッケージの詳細: 輸出用木製ケース

受渡し時間: 10〜15営業日

支払条件: T/T

お問い合わせ

今接触

指定

記述

指定

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Smart Positive Displacement Flow Meter, PD Flow Meter with remote Control, Remote control smart meter


公称直径:	40mm	正確さ:	±0.1％
電源:	DC24V、DC12V、またはDC220V	流量範囲:	25-250L/Min
防爆装置:	ExdbIIB T4 GB	保護クラス:	IP66

公称直径:	40mm
正確さ:	±0.1％
電源:	DC24V、DC12V、またはDC220V
流量範囲:	25-250L/Min
防爆装置:	ExdbIIB T4 GB
保護クラス:	IP66

記述

M-40-BPX-1 Meter with Electronic Register, Strainer, Air Eliminator & Solenoid Valve

Characteristics

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model	M-40-BPX-1	M-50-BPX-1	M-50H-BPX-1	M-80-BPX-1	M-80H-BPX-1	M-100-BPX-1	M-100H-BPX-1	M-150-BPX-1	M-150H-BPX-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
